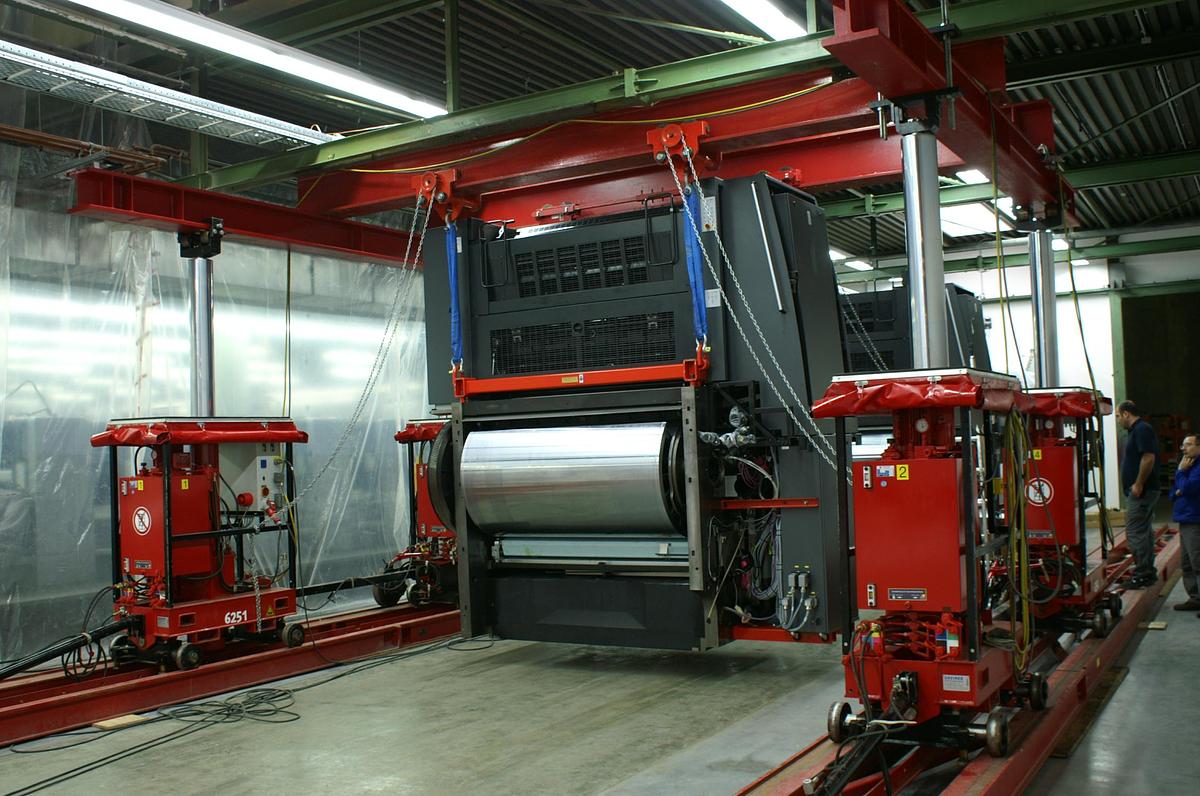

Greiner 160 ton 4 Point Hydraulic Lifting Gantry

Lifting System Type GSH-3 60/160  SPECIFICATION

Manufacturer:   Greiner-Fahrzeugtechnik GmbH, Neuenstein

Type:     GHS-3 60/160 4/2 Ram Lifting System

Serial No.:  1548

Year of manufacture:   08 / 2007

Remote Control

1.0 General Information:

See drawing: U.HG.025.0001 Type Sheet

- Maximum lifting load:

Cylinder stage

Max. lifting load 2 lifting portals

1═► 82,000 kg

2═► 56,000 kg

3═► 32,000 kg

Max. lifting load 4 lifting portals

1═► 164,000 kg

2═► 112,000 kg

3═► 64,000 kg

- Operating pressure:

- Max. valve setting:

250 bar

180 bar

- Stroke / telescopic cylinder 1st stage:                             1,375 mm

- Stroke / telescopic cylinder 2nd stage:                            1,285 mm

- Stroke / telescopic cylinder 3rd stage:                             1,240 mm

- Stroke / telescopic cylinder total:                                      3,900 mm

-  Lifting height: measured from the floor to the underside of the head beam without rail travel path.

- Lifting height / telescopic cylinder 1st stage:               3,365 mm

- Lifting height / telescopic cylinder 2nd stage:              4,650 mm

- Lifting height / telescopic cylinder 3rd stage:               5,890 mm

- Length of lifting ram                                                     1,220 mm

- Width of lifting ram                                                          700 mm

- Transport height of lifting ram without head plate       1,790 mm

- Transport height of lifting ram with head plate             1,990 mm

- Wheel diameter                                                              195 mm

- Track width of running gear and rail system:                 565 mm

-  Weight of lifting ram                                                    1100 kg
