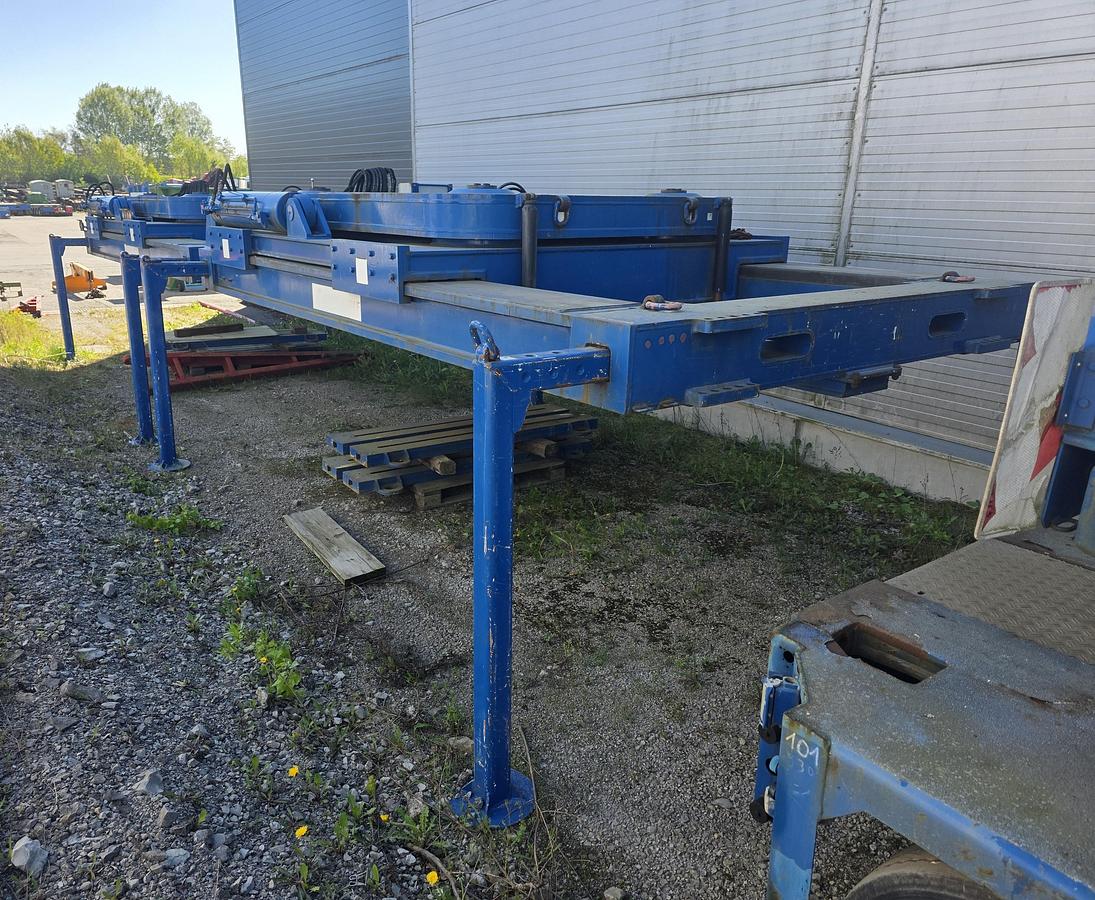

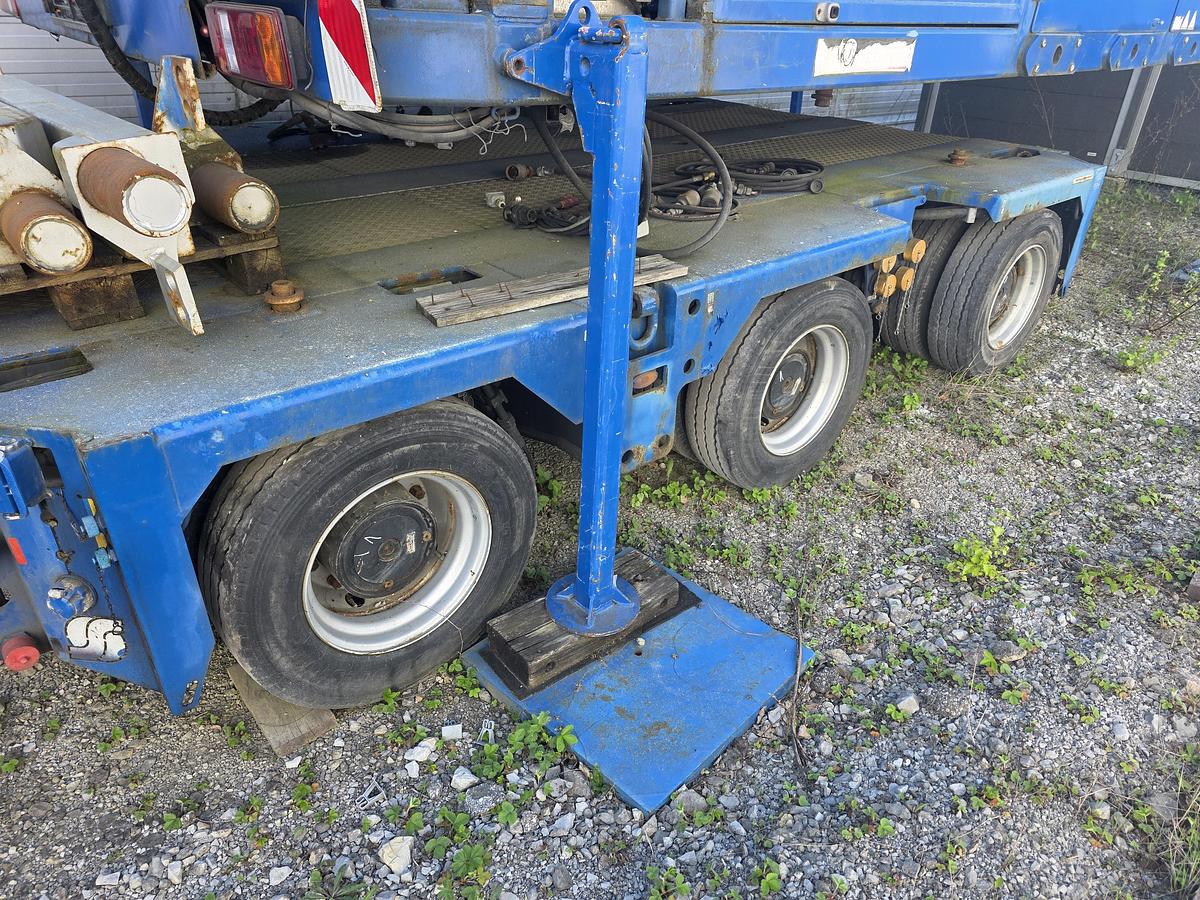

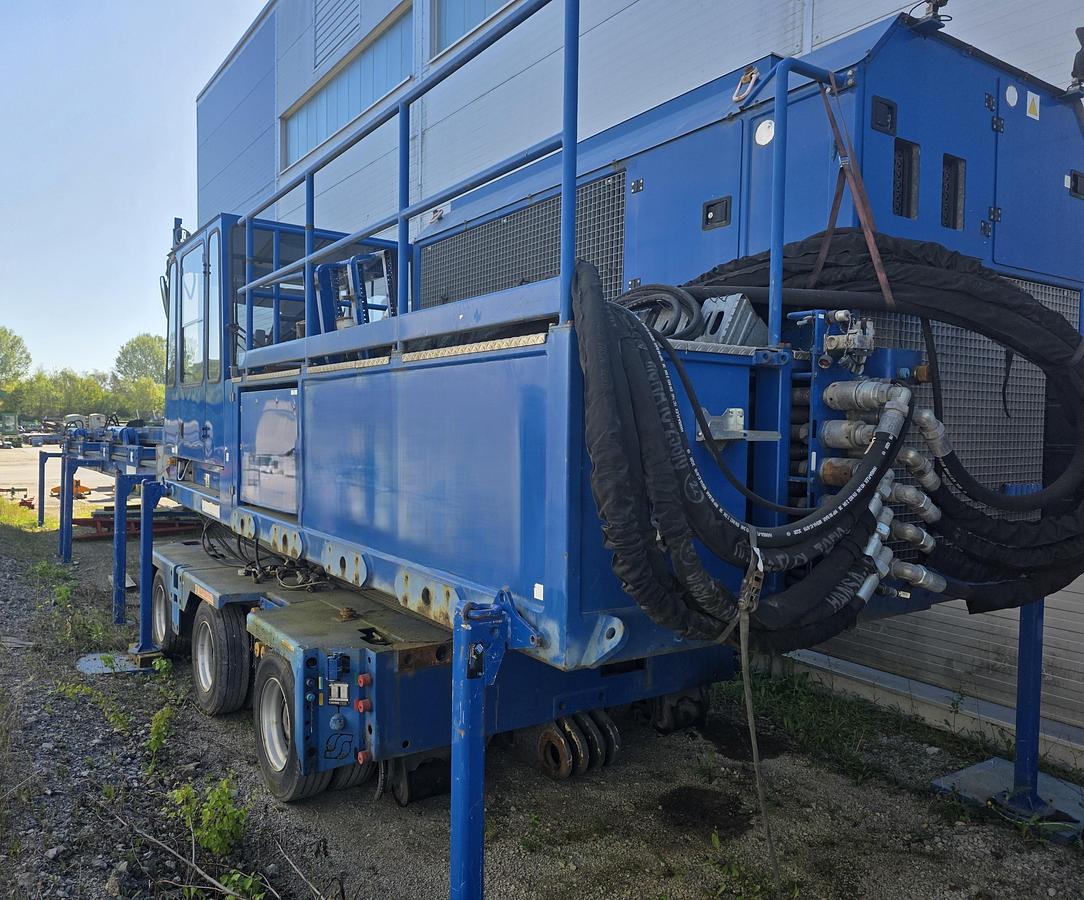

Scheurle Self Propelled Intercombi Modular Trailers, 36tonnes Per axle line Payload

Special Self Propelled Scheurle Intercombi Trailer/Power pack comprising:

2 x 500kw Power Packs

Maximum number of axles per power pack: 16

Maximum number of driven axles per Power pack: 6

Maximum axle line load @15km/h speed 25.8 tonnes

@ 10km/h speed 28 tonnes

@ 5km/h speed 34 tonnes

@ 1km/h speed 36 tonnes

Maximum total axle line load for one PPU driving 16 axle lines 36 x16 = 576 tonnes.

Each mounted on Intercombi 3 axle line Module

Operator cabin with front and rear facing controls

2 x Intercombi 3 axle line modules

2 x load distributors ( See attached illustration of axle configurations)

Maximum driving speed 15.5Km/h

Can be used as p

Year of manufacture 2012

Very low working hours

They do not need to be used with the Girder bridge as per photo.

Each can be used with up to 30 axle lines
