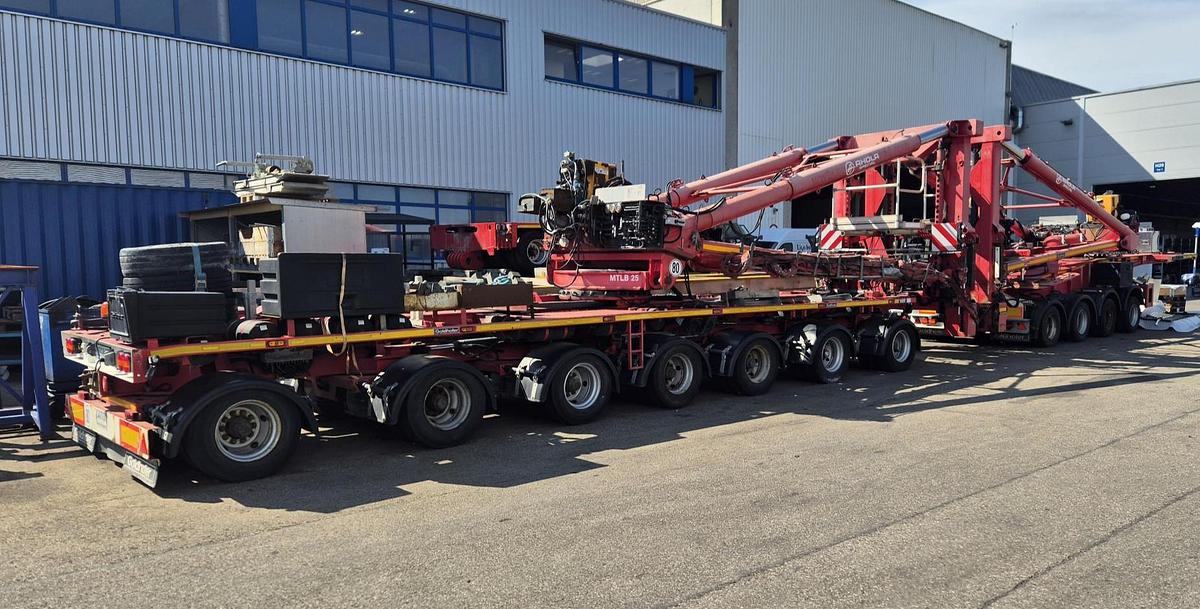

Goldhofer Windmill Tower Adapter/Trailer Model RA 3

Vehicle Description

Goldhofer special vehicle 11-axle

SXN-L 4 free-turning dolly + RA-3 pipe adapter + SN-L 7 trailer

Free-turning 4-axle dolly type SXN-L 4-54/80 for transporting

tower segments

• Weights

- Fifth wheel load: 28,400 kg

- Axles 4 x 10 t axle load (technical max. 12,000 kg)

- Total weight: 68,400 kg

- Dead weight: approx. 8,200 kg (without accessories)

- Payload: approx. 60,200 kg

• Gooseneck

- Width 2,500 mm

- Fifth wheel height (loaded): 1,300 mm

- Steering radius: rear 2,800 mm

- Kingpin: 3.5 inches

- 2nd ride height: 1,350 mm

- Folding supports for parking when unloaded,

capped width 2,990 mm

- Spare wheel holder at front

- Spare wheel complete with rim

• Loading area

- Length: 8,830 mm / Width: 2,550 mm

- Narrow frame with two welded sheet metal profile beams and

cross members

Saddle plate with ball socket for RA 3 mounting, can be screwed

into 5 positions

- the saddle plate can be replaced by another with a JSK fifth

wheel coupling

(not included) Loading height = height above ball socket

- Reinforced plate at the rear for RA 3-100 support cylinder

• Chassis

Vehicle Description

Goldhofer special vehicle 11-axle

SXN-L 4 free-turning dolly + RA-3 pipe adapter + SN-L 7 trailer

Free-turning 4-axle dolly type SXN-L 4-54/80 for transporting

tower segments

• Weights

- Fifth wheel load: 28,400 kg

- Axles 4 x 10 t axle load (technical max. 12,000 kg)

- Total weight: 68,400 kg

- Dead weight: approx. 8,200 kg (without accessories)

- Payload: approx. 60,200 kg

• Gooseneck

- Width 2,500 mm

- Fifth wheel height (loaded): 1,300 mm

- Steering radius: rear 2,800 mm

- Kingpin: 3.5 inches

- 2nd ride height: 1,350 mm

- Folding supports for parking when unloaded,

capped width 2,990 mm

- Spare wheel holder at front

- Spare wheel complete with rim

• Loading area

- Length: 8,830 mm / Width: 2,550 mm

- Narrow frame with two welded sheet metal profile beams and

cross members

Saddle plate with ball socket for RA 3 mounting, can be screwed

into 5 positions

- the saddle plate can be replaced by another with a JSK fifth

wheel coupling

(not included) Loading height = height above ball socket

- Reinforced plate at the rear for RA 3-100 support cylinder

• Chassis- Width 2,550 mm

- Wheelbase 1,310 mm

- Loading height (1): 1,740 mm + 140 mm / - 60 mm

- Loading height (2): 1,790 mm +/- 100 mm

- Axles: 1 + 2 axles rigid; 3 + 4 axles trailing axles

- Tires: 245/70 R 17.5 (146/146 F)

• General

- Central lubrication system, make “BEKA-MAX” with

one lubrication pump

- RAL 3002 carmine red

1 set RA 3-100

• Technical data:

- Payload: max. 102,000 kg (even load distribution 50:50;

smallest pipe diameter)

- Dead weight: approx. 15,800 kg

- Dead weight per pipe adapter approx. 7,900 kg

- Dimensions (W x H) approx. 2,750 mm x 3,305 mm

- DLR front: 5,700 mm

- DLR rear: 5,700 mm

- Combination SXN-L 4 + RA 3-100 + SN-L 7

- For mounting on saddle plate (dolly) and load distributor (SN-L

7)

• General/accessories:

- Two inclined cylinders, two vertical cylinders, and two support

cylinders

- Hydraulic height adjustment for adaptation to

different pipe diameters

- Ball screwed onto the support element (replaceable with KZ!),

- Pipe diameter inner flange 2,200 - 5,400 mm

- 8 x tension rods/pressure pieces (longest version t=250 mm)

- Coupling elements for connecting the adapters for empty runs

- Hydraulic transverse displacement

- Hydraulic support, stroke 340 mm, for support on the FW

Integrated 300 l oil tank in the front and rear cross members

- 2 x Hatz 10 kW “noise-reduced” 24 V) mounted on front and

rear cross members

- 2 electric cable remote controls for the hydraulic functions

- RAL 3002 carmine red

SN-L 7 trailing unit (approved as fast and slow running)

• Weights

- Axles 7 x 10 t axle load (technical max. 12,000 kg)

- Total weight: 70,000 kg

- Dead weight: approx. 13,400 kg (without accessories)

- Payload: approx. 56,600 kg

• Gooseneck

- Width 2,500 mm

- Saddle height (loaded): 1,300 mm

- Steering radius: rear 2,800 mm

- Kingpin: 3.5 inches

- Saddle height 2. Driving height: 1,350 mm

- Folding supports for parking when unloaded,

capped width 2,990 mm

- Spare wheel holder at front

- Spare wheel complete with rim

• Loading area

- Length: 10,500 mm / Width: 2,550 mm

- Closed outer frame

• Chassis

- Width 2,550 mm

- Wheelbase 1,650 mm/1,510 mm/1,360 mm/1,360 mm/1,510

mm/1,650 mm

- Loading height when loaded: approx. 1,175 mm +/- 100 mm

(upper edge of chassis tube)

- Rigid axles

- Axles: 1-3 steered / 4 rigid / 5-7 steered

- Tires: 245/70 R 17.5 (146/146 F)

• General

- Central lubrication system, make “BEKA-MAX” with

a lubrication pump

- RAL 3002 carmine red

- SUBJECT TO PRIOR SALE -

- INFORMATION PROVIDED WITHOUT GUARANTEE -
