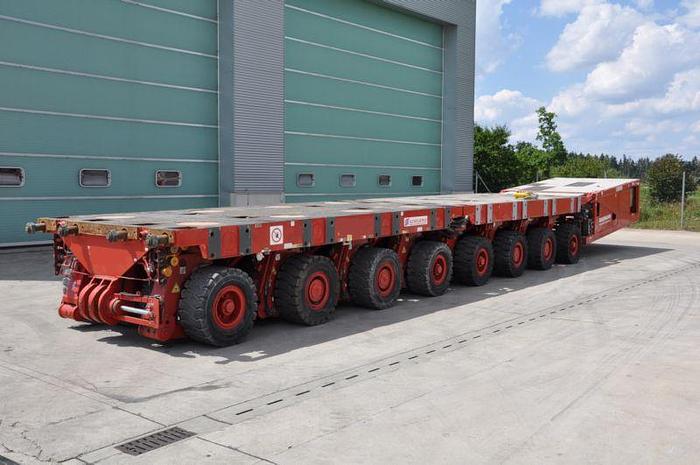

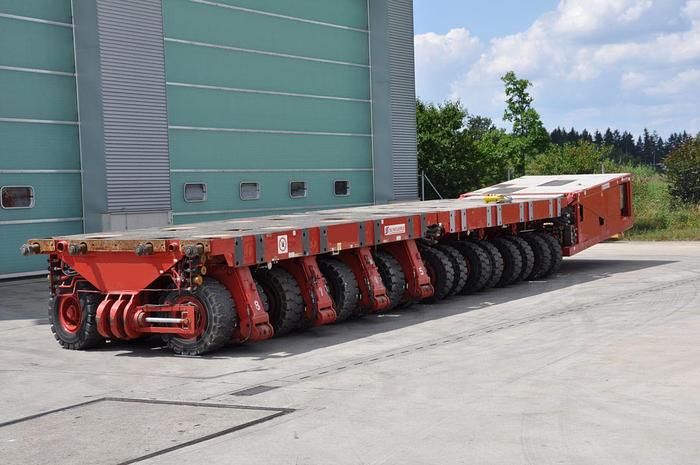

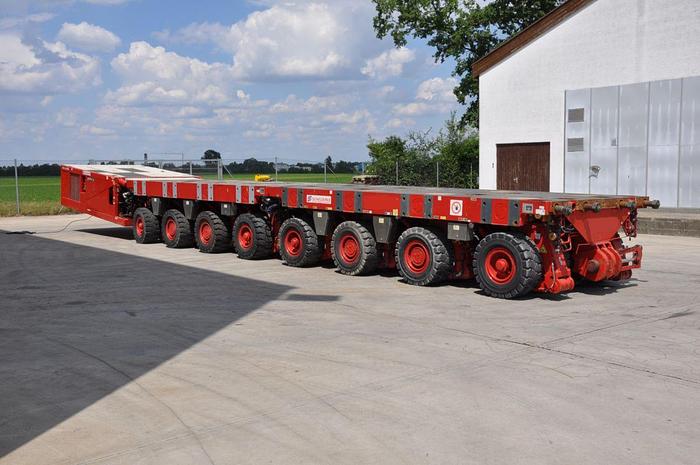

Scheurle SPMT (Self Propelled Modular Trailer) Max Payload 224 tonnes

Scheurle SPMT (Self Propelled Modular Trailer) Max Payload 224 tonnes

Contact us for price

Europe

orCall +44 141 884 1294

Description

2 x 4 axle Line Modular Trailers (8 axles per trailer) complete with Power Pack Unit and Remote Control

Year of Manufacture 2000

Fully upgraded to Generation 3 in 2014 and very little used since then.

Maximum Payload 136 tonnes @ 1km/hour per 4 axle line trailer

120 tonnes @ 3/5 km/hour per 4 axle line trailer

34 tonnes per axle

Length per trailer 5600mm

Total joined length 11,200mm

Width 2430mm

Axle centres 1400mm

Platform Height: 1500mm +/- 350mm

Full electronic steering


Power Pack Unit Model Z320

Daimler Chrysler Diesel Engine

Maximum Power 320kW/ 435 HP

Dimensions:

L: 4355mm W: 2310mm H: 1100mm

Weight: 7200kgs




Specifications

ManufacturerScheurle
ModelPEKZ 120.8.2 + PEKZ 120.8.2
Year2000
ConditionUsed
Serial Number8600
Maximum Payload224 tonnes
Max. platform height1850mm
Minimum Platform Height1150mm
