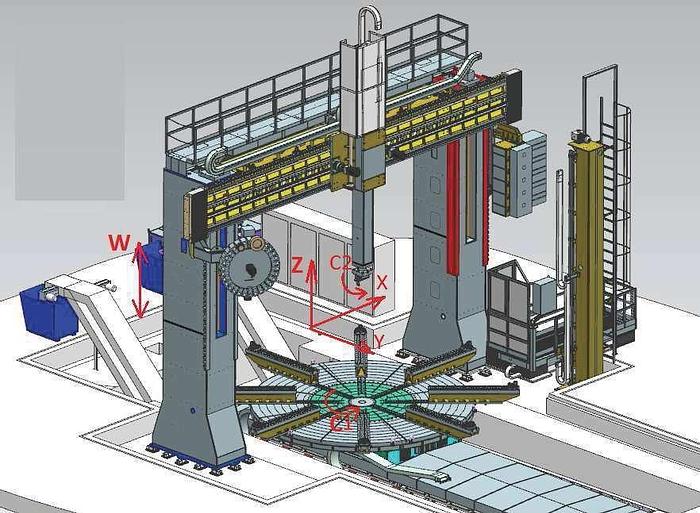

Feichter (Austria) 5 Axis Vertical Boring Mill, 6m diameter Table

Feichter Model FKD 80/60 CNC Vertical Boring/Milling Machine

Travels:

X Axis 8200mm

Y axis 4500mm

Z Axis 2000mm

W Axis 5000mm

C Axis 360 degree continuous table rotation control.

D Axis Table Diameter 6000mm extendable to 8500mm

Tabkle speeds:

Step 1 0 - 20 rpm

Step 2 0 - 70 rpm

Control: Siemens Sinumeric 840D SL

Maximum Table rotation Power 4 x 40kw

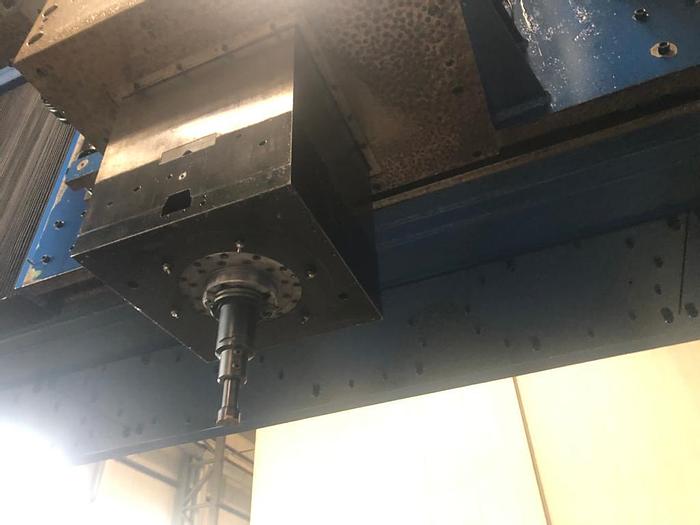

Spindle Power 40kw, Maximum 3000rpm, 1192Nm

Mazimum Workpiece diameter: 10,000-12,000mm

Maximum workpiece weight 120 tonnes

Year 2012
