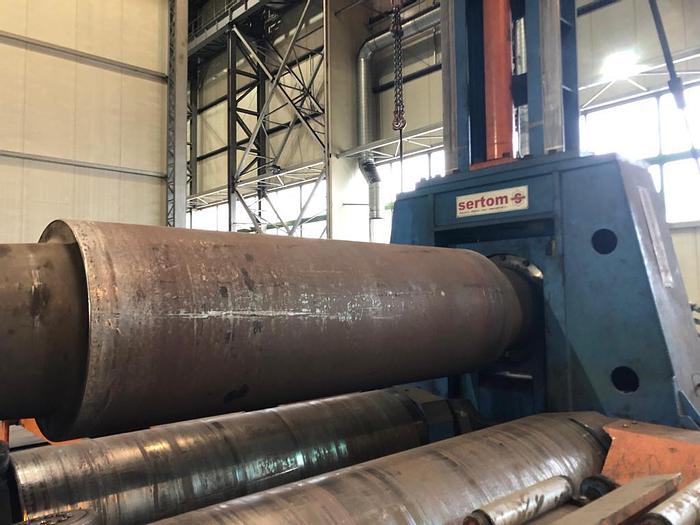

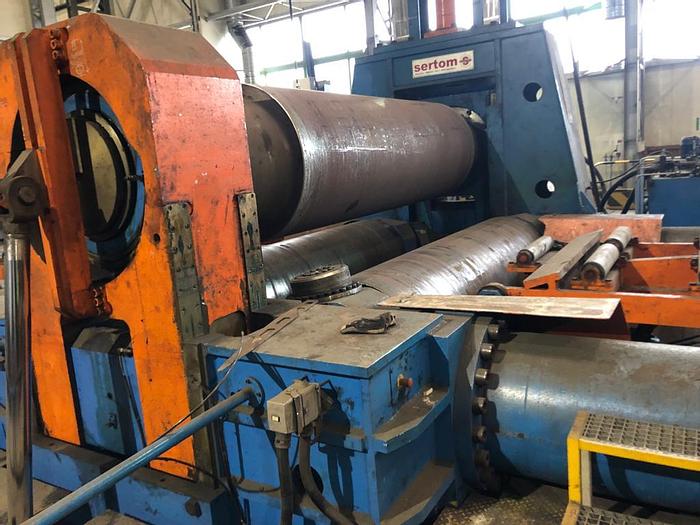

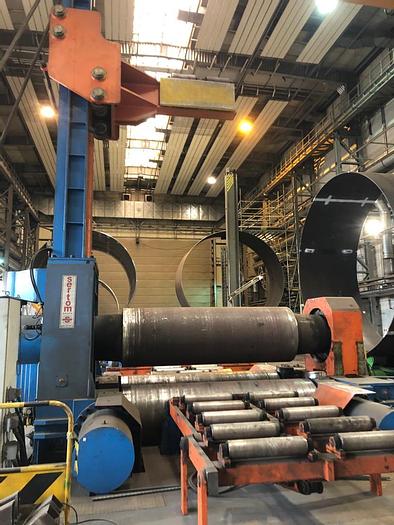

Sertom Plate Bending Rolls Model EMO 30-160, Year 2013 Capacity 160mm plate Thickness x 3m Wide

Sertom Plate Bending Rolls Model EMO 30-160, Year 2013 Capacity 160mm plate Thickness x 3m Wide

Contact us for price

United Kingdom

orCall +447771808889

Description

Hydraulic Plate bending rolls Sertom EMO 30 - 160


- Length of the top roll 3.100 mm

- Length the side rolls 3.100 mm

- Diameter of the top roll 1.030 mm

- Diameter of the side rolls 900 mm

- Max daylight between top and side rolls 215 mm

- Max pressure of the top roll 2.400 Ton

- Max inclination of upper roll +/- 10 degrees

- Max inclination of side rolls +/- 2 degrees

- Plate bending speed 2,5 - 6 m/min

- Adjusting speed of top roll 150 - 500 mm/min

- Adjusting speed of side rolls 600 - 1000 mm/min

- Power 290 kW

- Weight 199 Ton

- Size 5,7 x 9,7 x 5 m


- Prebending capacity ( inside diameter of pipe 1,5 x diameter of top roll ) 120 mm

- Prebending capacity ( inside diameter of pipe 5 x diameter of top roll ) 135 mm

- Bending capacity 160 mm

- Bending capacity by plate width of 1.500 mm 200 mm

Specifications

ManufacturerSertom
ModelEMO 30-160 CNC
Year2013
ConditionUsed
Maximum Capacity3100 x 160mm Thick Steel Plate
