2009 Ficep Heavy Duty Steel Beam Saw & Drill Line

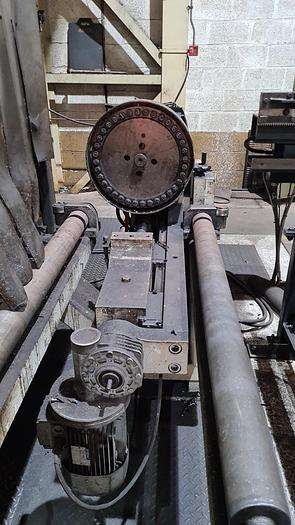

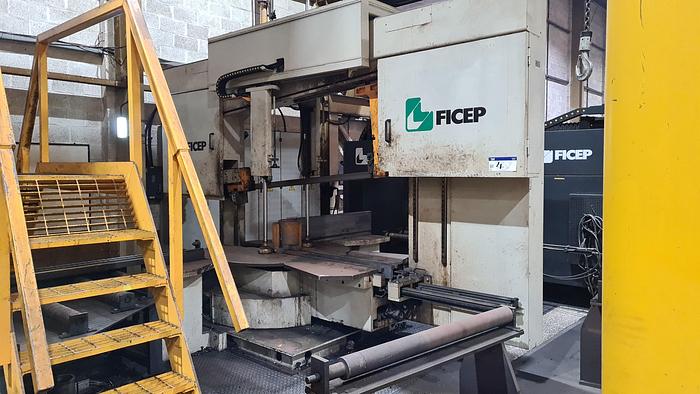

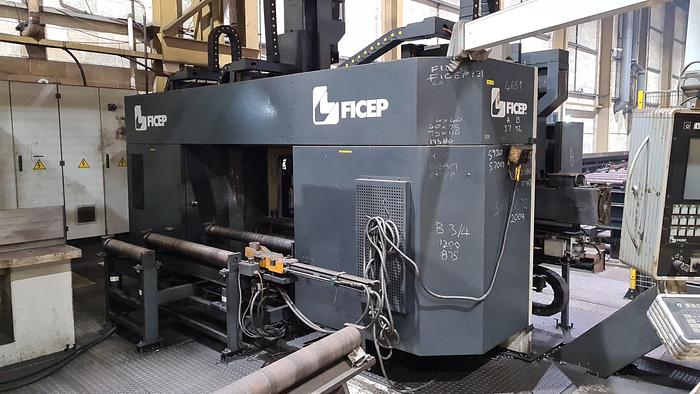

Ficep Model 1203 DJB Saw and Drill line

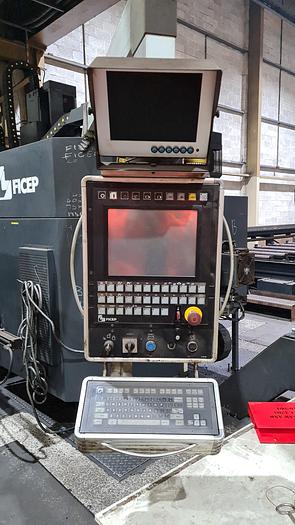

Year  2009, Minosse 7 Axis Control System.

Complete with Marking and Under Scribing

Drilling Machine

Capacities:

Double T beams welded or fabricated:

Web Height                                                                              80 – 1220mm

Flanges height                                                                        42 – 600mm

U Channels:                                                                            80 – 1220mm

Flanges height                                                                        45 – 300mm

Angles:                                                                                    80 x 80 x 8mm

                                                                                                300 x300x 50mm

Flats:                                                                                       100 x 1220mm

Square Tubes:                                                                         80 x 80mm

                                                                                                600 x 600mm

Rectangular Tubes:                                                                80 x 40mm

                                                                                                1200 x 600mm

Length of sections to be processed:                                  1500 – 20,000mm infeed

                                                                                                            12,000mm outfeed

Max Positioning weight:                                                         12,000kgs

Max Linear weight of section to be handled:                         375kg/m

Carriage speed:                                                                      40m/min

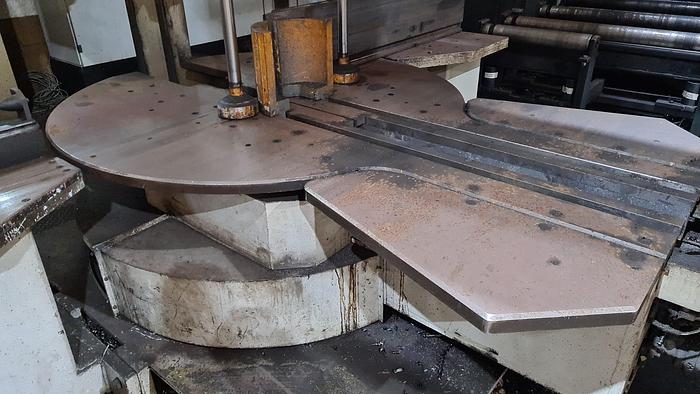

Sawing Machine Model 1260 BH

Capacity @ 90 degrees                                                            Min   80 x 10mm

                                                                                                Max  1250 x 600mm

Capacity @ 45 degrees                                                            Max  800 x 600mm

Capacity & 60 degrees                                                           500 x 500mm

Saw motor power                                                                    11 kw

Sawing Speed:                                                                        20- 100m/min

Band Size:                                                                               67 x 1.6mm

Marking Unit

Marking Capacity                                                                    kN 80

Marking positions                                                                   36 no.

Size of Marking Letter                                                            16 x 8mm

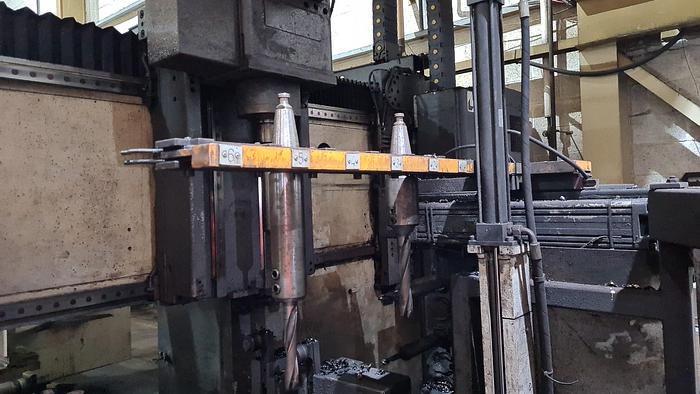

Drilling Heads

Number of heads:                                                                    2 x Horizontal

                                                                                                1 x Vertical

Max drilling diameter with adapter No 4:                               50mm

Max thickness to be drilled:                                                   100mm

Spindle rotation motor power:                                                19 kW

Spindle speeds (Infinitely variable)                                        180 – 3000 RPM.

Positioning Stroke to suit gauge line:

Vertical head                                                                          20 – 1200mm

Horizontal Head                                                                      20 – 600mm

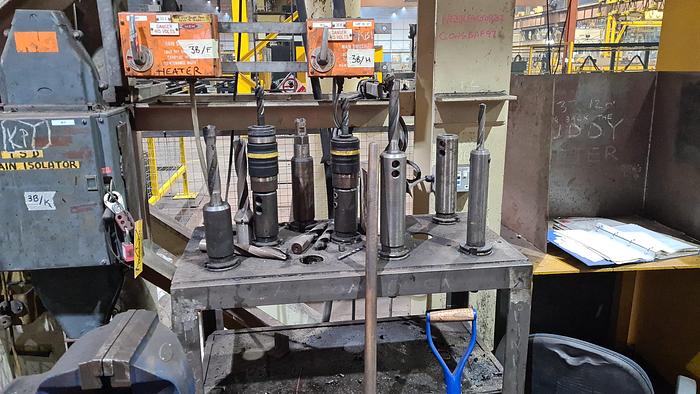

Tool Change

Number of tool change devices                                             3

Number of tools  to be changed                                             6

Adapror size                                                                            ISO 45

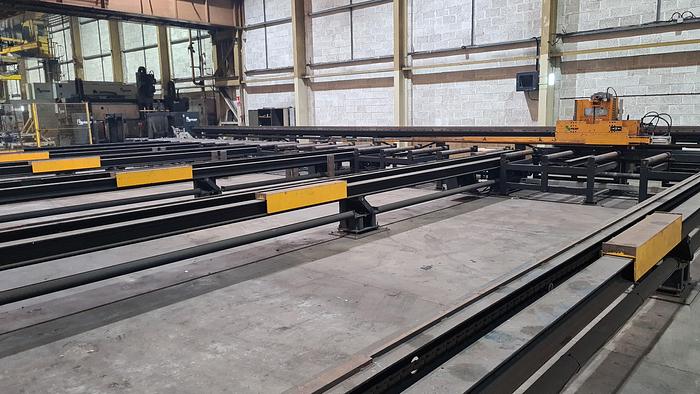

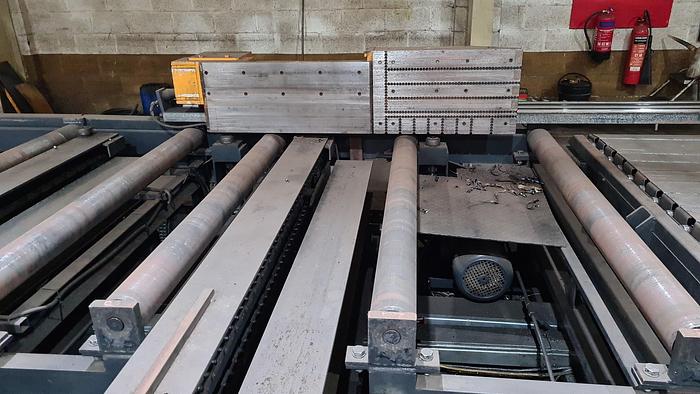

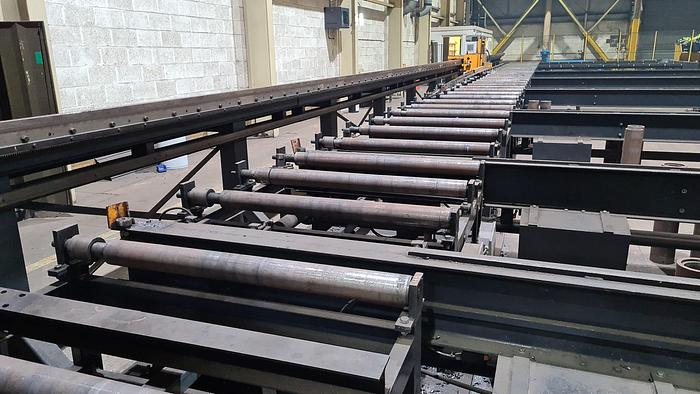

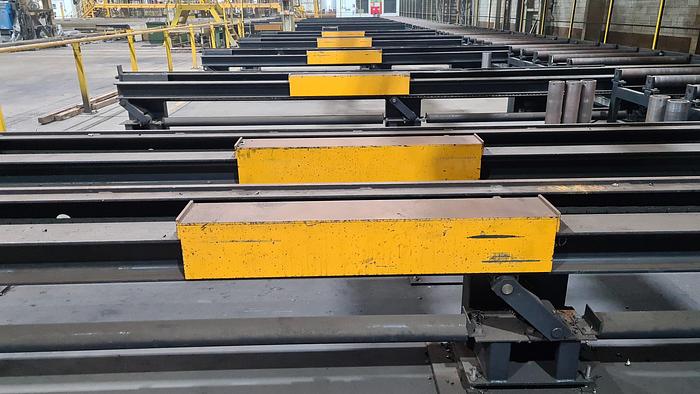

Machine complete with cross feed infeed and out feed, quantity of tools including

scribing and tool adaptors.
