GOTTWALD HEAVY MOBILE SLEWING CRANE
No longer available
GOTTWALD HEAVY MOBILE SLEWING CRANE
Paisley, United Kingdom
Description
Gottwald, MK1500, Sr. No. 12914200
1500te capacity mobile lattice boom crane
e.g., 860te @ 24m, 475te @ 40m,

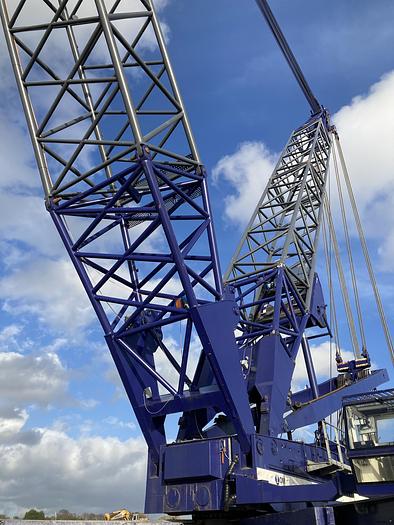

114m of main boom, 42m back mast, 23m fly jib
On 12 or 17m leg centres
Dehann 1000/500te hook block,
Extensive refurbishment in 2018 to include:
Replacement N14 Cummins engine
All hydraulic pumps, valves and motors replaced
Complete new PAT control system and SLI
All wiring and pipe work replaced with new / Stainless steel
All wire ropes replaced or X-rayed and pull tested
Full re paint and inspection on all items
Spares to include 3 unused hoist wires, brake packs, motors and pumps
Complete / full load tests, in LoLar ticket and working today
Full / all Manuals, drawings and certification packs available
I
GOTTWALD MK1500 REFURBISHMENT
During the refurbishment of the MK1500 which was completed in October 2018, the following works were carried out:

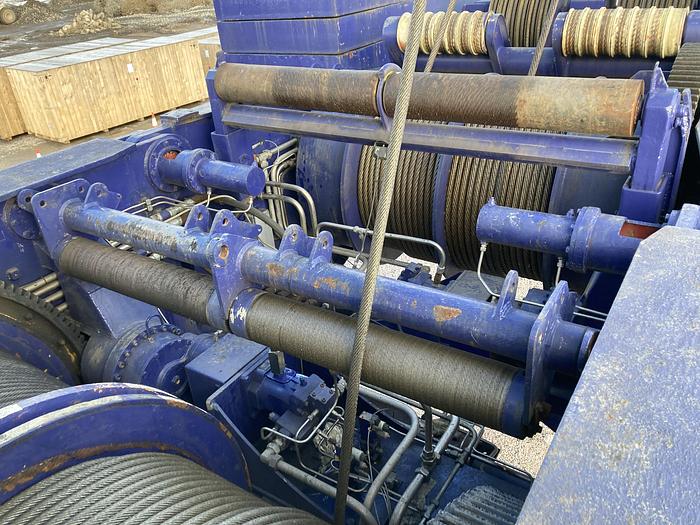

- Replace engine, pumps and motors driving the winches
- Replace seals, check and record brake packs on winches
- Remove, grease, scan and sample - pull test each wire rope
- Replace wires as required, (3 spares with machine)
- NDT, inspect and re-tag all pendant wires
- Prep and paint entire crane and ballast
- New DSC engine control system fitted

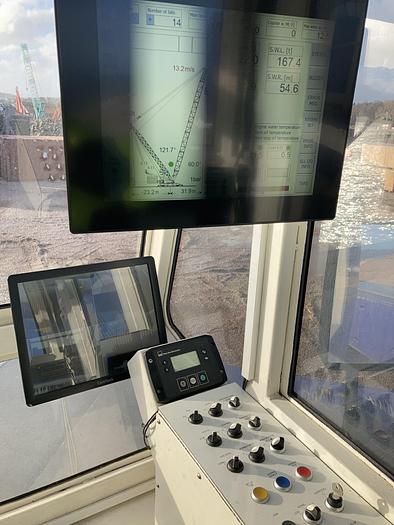

- Strip and re-build cab, new operator chair and Eberspacher diesel heater fitted
- All cables and all hardware for the control system were replaced

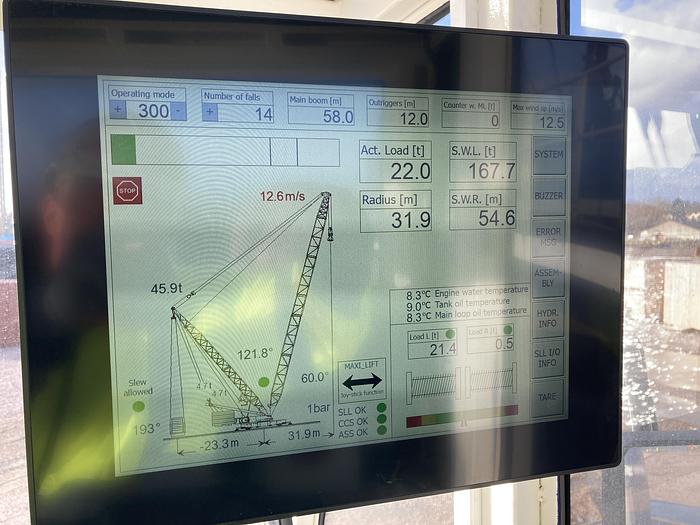

- Full PAT Crane Control System and Safe Load Limiter system fitted
- 4 cameras and screen fitted

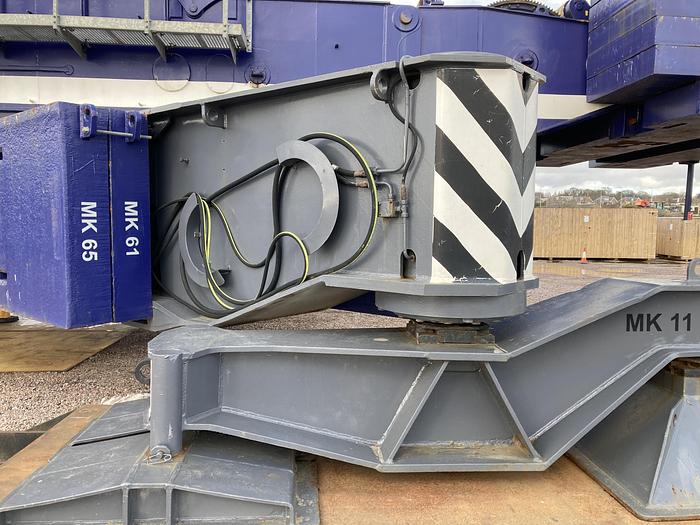

- Re-chrome and reseal support rams
- Replace every hydraulic control valve
- Replace all hydraulic pipes and install stainless steel pipes
- Remove, grease / inspect / replace all winch bearings
- New 1000te hook 2012
- All systems underwent full Site Acceptance Test by installer / manufacturer prior to crane being signed off
- All works overseen by 3rd party Engineering company
- Amend and save new Operating Manual
- Archive all relevant certification and documentation from the project
- Full load test carried out and witnessed by a 3rd party testing company
- The refurbishment of the crane did not involve any changes to the main components / structure, load chart / capacities, boom, winches, gearboxes or brakes.
Specifications
Condition | Used |
Capacity | 1500 Tonnes |
